Configuration

The configuration should be the following paths otherwise Rio will use the default configuration.

MacOS configuration file path is ~/.config/rio/config.toml.

Linux configuration file path is $XDG_CONFIG_HOME/rio/config.toml or ~/.config/rio/config.toml.

Windows configuration file path is %USERPROFILE%\AppData\Local\rio\config.toml or $env:USERPROFILE\AppData\Local\rio\config.toml(PowerShell).

You can also set a custom config path by using the $RIO_CONFIG_HOME env var. It will be used as a replacement for ~/.config/rio reading configs, themes... Updates to the configuration file automatically triggers Rio to render the terminal with the new configuration.

Note that all parameters without a header must be at the beginning of the file, otherwise they will be ignored. Example:

[editor]
program = "vi"
args = []

theme = "dracula" # won't work, because it's under the `editor` header

theme = "dracula" # will work

[editor]
program = "vi"
args = []

adaptive-theme

Rio supports adaptive themes that automatically switch between light and dark themes based on the system theme. This feature works on Web, MacOS, and Windows platforms.

[adaptive-theme]
light = "belafonte-day"
dark = "belafonte-night"

When configured, Rio will automatically switch between the specified light and dark themes based on your system's current theme setting.

force-theme

When using adaptive themes, you can override the system theme by forcing Rio to use a specific theme regardless of the system appearance.

force-theme = "dark"

Accepted values: "dark" or "light". When not set, Rio follows the system theme.

You can also toggle the appearance theme at runtime using the ToggleAppearanceTheme key binding action or through the command palette.

colors

Defining colors in the configuration file will not have any effect if you're using a theme.

The default configuration is without a theme.

Example:

[colors]
# Regular colors
background = '#0F0D0E'
black = '#4C4345'
blue = '#006EE6'
cyan = '#88DAF2'
foreground  = '#F9F4DA'
green = '#0BA95B'
magenta = '#7B5EA7'
red = '#ED203D'
white = '#F1F1F1'
yellow = '#FCBA28'

# Cursor
cursor = '#F712FF'
vi-cursor = '#12d0ff'

# Navigation
tabs = '#cccccc'  # Inactive tab text and border color
tabs-active = '#ffffff'  # Active tab text color
bar = '#1b1a1a'
split = '#292527'

# Search
search-match-background = '#44C9F0'
search-match-foreground = '#FFFFFF'
search-focused-match-background = '#E6A003'
search-focused-match-foreground = '#FFFFFF'

# Hints
hint-foreground = '#181818'
hint-background = '#f4bf75'

# Selection`
selection-foreground = '#0F0D0E'
selection-background = '#44C9F0'

# Dim colors
dim-black = '#1C191A'
dim-blue = '#0E91B7'
dim-cyan = '#93D4E7'
dim-foreground = '#ECDC8A'
dim-green = '#098749'
dim-magenta = '#624A87'
dim-red = '#C7102A'
dim-white = '#C1C1C1'
dim-yellow = '#E6A003'

# Light colors
light-black = '#ADA8A0'
light-blue = '#44C9F0'
light-cyan = '#7BE1FF'
light-foreground = '#F2EFE2'
light-green = '#0ED372'
light-magenta = '#9E88BE'
light-red = '#F25E73'
light-white = '#FFFFFF'
light-yellow = '#FDF170'

You can also specify RGBA with hex, for example: #43ff64d9.

confirm-before-quit

Require confirmation before quitting (Default: true).

confirm-before-quit = true

copy-on-select

Automatically copy the selected text to the clipboard when a mouse selection ends. Disabled by default.

This is a top-level option — it must appear before any [section] header in your config file.

copy-on-select = true

cursor

By default, the cursor shape is set to block. You can also choose from other options like underline and beam.

Additionally, you can enable or disable cursor blinking, which is set to false by default.

Shape

Options: 'block', 'underline', 'beam'

[cursor]
shape = 'block'

Blinking

Enable/disable blinking (default: false)

[cursor]
blinking = false

Blinking-interval

Set cursor blinking interval (default: 800, only configurable from 350ms to 1200ms).

[cursor]
blinking-interval = 800

bell

Configure the terminal bell behavior. The bell can be triggered by applications using the BEL control character (ASCII 7).

Visual

Enable or disable the visual bell. When enabled, the screen will flash instead of playing a sound.

Default is false.

[bell]
visual = false

Audio

Enable or disable the audio bell. When enabled, a sound will play when the bell is triggered.

Default behavior:

• macOS: true (uses system notification sound)
• Windows: true (uses system notification sound)
• Linux/BSD: false (requires audio feature during compilation)

[bell]
audio = true

資訊

On Linux and BSD systems, audio bell support requires Rio to be compiled with the audio feature flag. Distribution packages typically don't include this feature to minimize dependencies. See Build from source for compilation instructions with audio support.

developer

This property enables log level filter and file. The default level is "OFF" and the logs are not logged to a file as default. The level may be DEBUG, INFO, TRACE, ERROR, WARN or OFF.

[developer]
log-level = "OFF"
enable-log-file = false

The default log file is located at ~/.config/rio/log/rio.log.

If you have any suggestion of configuration ideas to Rio, please feel free to open an issue.

draw-bold-text-with-light-colors

Default is false

draw-bold-text-with-light-colors = false

editor

This setting specifies the editor Rio will use to open the configuration file. By default, the editor is set to vi.

Whenever the key binding OpenConfigEditor is triggered, Rio will use the configured editor and the path to the Rio configuration file.

For example, if you have VS Code installed and want to use it as your editor, the configuration would look like this:

[editor]
program = "code"
args = []

When OpenConfigEditor is triggered, it will execute the command: $ code <path-to-rio-configuration-file>.

注意

If you set a value for program, Rio will look for it in the default system application directory (/usr/bin on Linux and macOS). If your desired editor is not in this directory, you must specify its full path:

[editor]
program = "/usr/local/bin/code"
args = []

effects

Configure visual effects for the terminal.

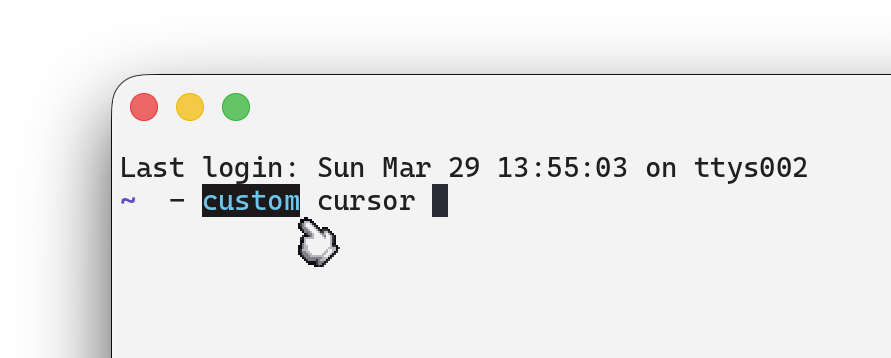

• custom-mouse-cursor: Enables a custom mouse cursor effect. Default: false

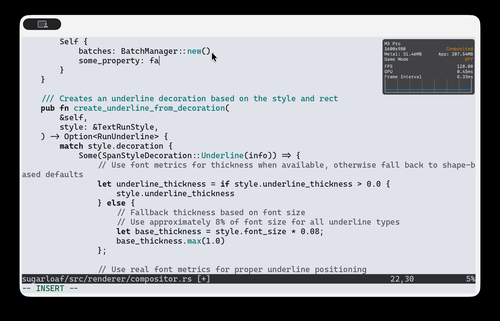

• trail-cursor: Enables a smooth trail animation when the terminal cursor moves, using spring physics for natural motion. Default: false

[effects]
custom-mouse-cursor = true
trail-cursor = true

env-vars

Sets environment variables.

Example:

env-vars = ["FIRST_VARIABLE_NAME=123", "SECOND_VARIABLE_NAME=456"]

fonts

The font configuration default:

[fonts]
size = 14
features = []
use-drawable-chars = true
symbol-map = []
disable-warnings-not-found = false
additional-dirs = []

[fonts.regular]
family = "cascadiacode"
style = "default"

[fonts.bold]
family = "cascadiacode"
style = "default"

[fonts.italic]
family = "cascadiacode"
style = "default"

[fonts.bold-italic]
family = "cascadiacode"
style = "default"

Each per-slot style accepts "default" (let font discovery pick using slot-implied bold/italic traits), false (disable this style — fall back to the regular face), or a face style name like "Light", "Medium", "Bold", "Heavy".

fonts.disable-warnings-not-found

Disables warnings regarding fonts not found. Default it false.

fonts.disable-warnings-not-found = false

fonts.family

Note: You can set different font families but Rio terminal will always look for regular font bounds whene

You can also set family on root to overwrite all fonts.

fonts.family = "cascadiacode"

fonts.features

In case you want to specify any font feature:

fonts.features = ["ss02", "ss03", "ss05", "ss19"]

Note: Font features do not have support to live reload on configuration, so to reflect your changes, you will need to close and reopen Rio.

fonts.hinting

Enable or disable font hinting. It is enabled by default.

fonts.hinting = true

fonts.symbol-map

Has no default values. Example values are shown below:

fonts.symbol-map = [
  # covers: '⊗','⊘','⊙'
  { start = "2297", end = "2299", font-family = "Cascadia Code NF" }
]

Map the specified Unicode codepoints to a particular font. Useful if you need special rendering for some symbols, such as for Powerline. Avoids the need for patched fonts.

In case you would like to map many codepoints:

fonts.symbol-map = [
  { start = "E0A0", end = "E0A3", font-family = "PowerlineSymbols" },
  { start = "E0C0", end = "E0C7", font-family = "PowerlineSymbols" }
]

fonts.use-drawable-chars

When set true, Rio terminal will use built-in draw system for specific set of characters (including box drawing characters (Unicode points U+2500 - U+259F), legacy computing symbols (U+1FB00 - U+1FB3B), and powerline symbols (U+E0B0 - U+E0BF)).

fonts.use-drawable-chars = true

The list of characters

• ─ Horizontal
• ═ DoubleHorizontal
• │ Vertical
• ║ DoubleVertical
• ━ HeavyHorizontal
• ┃ HeavyVertical
• └ TopRight
• ┘ TopLeft
• ┌ BottomRight
• ┐ BottomLeft
• ┼ Cross
• ├ VerticalRight
• ┤ VerticalLeft
• ┬ HorizontalDown
• ┴ HorizontalUp
• ╥ DownDoubleAndHorizontalSingle
• ╤ DownSingleAndHorizontalDouble
• ╘ UpSingleAndRightDouble
• ╛ UpSingleAndLeftDouble
• ╪ VerticalSingleAndHorizontalDouble
• ╚ DoubleUpAndRight
• ╝ DoubleUpAndLeft
• ╯ ArcTopLeft
• ╭ ArcBottomRight
• ╮ ArcBottomLeft
• ╰ ArcTopRight
• ▂ LowerOneQuarterBlock
• ▁ LowerOneEighthBlock
• ▃ LowerThreeEighthsBlock
• ▎ LeftOneQuarterBlock
• ▍ LeftThreeEighthsBlock
• ▊ LeftThreeQuartersBlock
• ▕ RightOneQuarterBlock
• 🮈 RightThreeEighthsBlock
• 🮊 RightThreeQuartersBlock
• ▔ UpperOneEighthBlock
• 🮃 UpperThreeEighthsBlock
• 🮅 UpperThreeQuartersBlock
• ┄ HorizontalLightDash
• ┅ HorizontalHeavyDash
• ┈ HorizontalLightDoubleDash
• ┉ HorizontalHeavyDoubleDash
• ╌ HorizontalLightTripleDash
• ╍ HorizontalHeavyTripleDash
• ┆ VerticalLightDash
• ┇ VerticalHeavyDash
• ┊ VerticalLightDoubleDash
• ┋ VerticalHeavyDoubleDash
• ╎ VerticalLightTripleDash
• ╏ VerticalHeavyTripleDash
• ▘ QuadrantUpperLeft
• ▝ QuadrantUpperRight
• ▖ QuadrantLowerLeft
• ▗ QuadrantLowerRight
• ▀ UpperHalf
• ▄ LowerHalf
• ▌ LeftHalf
• ▐ RightHalf
• ░ LightShade
• ▒ MediumShade
• ▓ DarkShade
• █ FullBlock
• ╬ - DoubleCross
• ╠ - DoubleVerticalRight
• ╣ - DoubleVerticalLeft
• ╦ - DoubleHorizontalDown
• ╩ - DoubleHorizontalUp
• ╫ - VerticalDoubleAndHorizontalSingle
• ╓ - DownDoubleAndRightSingle
• ╖ - DownDoubleAndLeftSingle
• ╟ - VerticalDoubleAndRightSingle
• ╢ - VerticalDoubleAndLeftSingle
• ╞ - VerticalSingleAndRightDouble
• ╡ - VerticalSingleAndLeftDouble
• ╒ - DownSingleAndRightDouble
• ╕ - DownSingleAndLeftDouble
• ┏ - HeavyDownAndRight
• ┓ - HeavyDownAndLeft
• ┗ - HeavyUpAndRight
• ┛ - HeavyUpAndLeft
• ┣ - HeavyVerticalAndRight
• ┫ - HeavyVerticalAndLeft
• ┳ - HeavyHorizontalAndDown
• ┻ - HeavyHorizontalAndUp
• ╋ - HeavyCross
• ┍ - LightDownAndHeavyRight
• ┑ - LightDownAndHeavyLeft
• ┎ - HeavyDownAndLightRight
• ┒ - HeavyDownAndLightLeft
• ┕ - LightUpAndHeavyRight
• ┙ - LightUpAndHeavyLeft
• ┖ - HeavyUpAndLightRight
• ┚ - HeavyUpAndLightLeft
• ▅ - LowerFiveEighthsBlock
• ▆ - LowerThreeQuartersBlock
• ▇ - LowerSevenEighthsBlock
• ▚ - QuadrantUpperLeftAndLowerLeft
• ▞ - QuadrantUpperLeftAndLowerRight
• ▟ - QuadrantUpperRightAndLowerLeft
• ▙ - QuadrantUpperRightAndLowerRight
• 🬁 - SextantUpperLeft
• 🬂 - SextantUpperMiddle
• 🬃 - SextantUpperRight
• 🬄 - SextantLowerLeft
• 🬅 - SextantLowerMiddle
• 🬆 - SextantLowerRight
• 🬉 - SeparatedSextantUpperLeft
• 🬊 - SeparatedSextantUpperMiddle
• 🬋 - SeparatedSextantUpperRight
• 🬌 - SeparatedSextantLowerLeft
• 🬍 - SeparatedSextantLowerMiddle
• 🬎 - SeparatedSextantLowerRight
• 🬓 - SeparatedQuadrantUpperLeft
• 🬔 - SeparatedQuadrantUpperRight
• 🬕 - SeparatedQuadrantLowerLeft
• 🬖 - SeparatedQuadrantLowerRight
• ╱ - DiagonalRisingBar
• ╲ - DiagonalFallingBar
• ╳ - DiagonalCross
•  PowerlineLeftSolid
•  PowerlineRightSolid
•  PowerlineLeftHollow
•  PowerlineRightHollow
•  PowerlineCurvedRightSolid
•  PowerlineCurvedRightHollow
•  PowerlineCurvedLeftSolid
•  PowerlineCurvedLeftHollow
• \ue0b8 PowerlineLowerLeftTriangle
• \ue0b9 PowerlineBackslashSeparator
• \ue0ba PowerlineLowerRightTriangle
• \ue0bb PowerlineForwardslashSeparator
• \ue0bc PowerlineUpperLeftTriangle
• \ue0bd PowerlineForwardslashSeparatorRedundant
• \ue0be PowerlineUpperRightTriangle
• \ue0bf PowerlineBackslashSeparatorRedundant
• ⠀ BrailleBlank
• ⠁ BrailleDots1
• ⠂ BrailleDots2
• ⠃ BrailleDots12
• ⠄ BrailleDots3
• ⠅ BrailleDots13
• ⠆ BrailleDots23
• ⠇ BrailleDots123
• ⠈ BrailleDots4
• ⠉ BrailleDots14
• ⠊ BrailleDots24
• ⠋ BrailleDots124
• ⠌ BrailleDots34
• ⠍ BrailleDots134
• ⠎ BrailleDots234
• ⠏ BrailleDots1234
• ⠐ BrailleDots5
• ⠑ BrailleDots15
• ⠒ BrailleDots25
• ⠓ BrailleDots125
• ⠔ BrailleDots35
• ⠕ BrailleDots135
• ⠖ BrailleDots235
• ⠗ BrailleDots1235
• ⠘ BrailleDots45
• ⠙ BrailleDots145
• ⠚ BrailleDots245
• ⠛ BrailleDots1245
• ⠜ BrailleDots345
• ⠝ BrailleDots1345
• ⠞ BrailleDots2345
• ⠟ BrailleDots12345
• ⠠ BrailleDots6
• ⠡ BrailleDots16
• ⠢ BrailleDots26
• ⠣ BrailleDots126
• ⠤ BrailleDots36
• ⠥ BrailleDots136
• ⠦ BrailleDots236
• ⠧ BrailleDots1236
• ⠨ BrailleDots46
• ⠩ BrailleDots146
• ⠪ BrailleDots246
• ⠫ BrailleDots1246
• ⠬ BrailleDots346
• ⠭ BrailleDots1346
• ⠮ BrailleDots2346
• ⠯ BrailleDots12346
• ⠰ BrailleDots56
• ⠱ BrailleDots156
• ⠲ BrailleDots256
• ⠳ BrailleDots1256
• ⠴ BrailleDots356
• ⠵ BrailleDots1356
• ⠶ BrailleDots2356
• ⠷ BrailleDots12356
• ⠸ BrailleDots456
• ⠹ BrailleDots1456
• ⠺ BrailleDots2456
• ⠻ BrailleDots12456
• ⠼ BrailleDots3456
• ⠽ BrailleDots13456
• ⠾ BrailleDots23456
• ⠿ BrailleDots123456
• ⡀ BrailleDots7
• ⡁ BrailleDots17
• ⡂ BrailleDots27
• ⡃ BrailleDots127
• ⡄ BrailleDots37
• ⡅ BrailleDots137
• ⡆ BrailleDots237
• ⡇ BrailleDots1237
• ⡈ BrailleDots47
• ⡉ BrailleDots147
• ⡊ BrailleDots247
• ⡋ BrailleDots1247
• ⡌ BrailleDots347
• ⡍ BrailleDots1347
• ⡎ BrailleDots2347
• ⡏ BrailleDots12347
• ⡐ BrailleDots57
• ⡑ BrailleDots157
• ⡒ BrailleDots257
• ⡓ BrailleDots1257
• ⡔ BrailleDots357
• ⡕ BrailleDots1357
• ⡖ BrailleDots2357
• ⡗ BrailleDots12357
• ⡘ BrailleDots457
• ⡙ BrailleDots1457
• ⡚ BrailleDots2457
• ⡛ BrailleDots12457
• ⡜ BrailleDots3457
• ⡝ BrailleDots13457
• ⡞ BrailleDots23457
• ⡟ BrailleDots123457
• ⡠ BrailleDots67
• ⡡ BrailleDots167
• ⡢ BrailleDots267
• ⡣ BrailleDots1267
• ⡤ BrailleDots367
• ⡥ BrailleDots1367
• ⡦ BrailleDots2367
• ⡧ BrailleDots12367
• ⡨ BrailleDots467
• ⡩ BrailleDots1467
• ⡪ BrailleDots2467
• ⡫ BrailleDots12467
• ⡬ BrailleDots3467
• ⡭ BrailleDots13467
• ⡮ BrailleDots23467
• ⡯ BrailleDots123467
• ⡰ BrailleDots567
• ⡱ BrailleDots1567
• ⡲ BrailleDots2567
• ⡳ BrailleDots12567
• ⡴ BrailleDots3567
• ⡵ BrailleDots13567
• ⡶ BrailleDots23567
• ⡷ BrailleDots123567
• ⡸ BrailleDots4567
• ⡹ BrailleDots14567
• ⡺ BrailleDots24567
• ⡻ BrailleDots124567
• ⡼ BrailleDots34567
• ⡽ BrailleDots134567
• ⡾ BrailleDots234567
• ⡿ BrailleDots1234567
• ⢀ BrailleDots8
• ⢁ BrailleDots18
• ⢂ BrailleDots28
• ⢃ BrailleDots128
• ⢄ BrailleDots38
• ⢅ BrailleDots138
• ⢆ BrailleDots238
• ⢇ BrailleDots1238
• ⢈ BrailleDots48
• ⢉ BrailleDots148
• ⢊ BrailleDots248
• ⢋ BrailleDots1248
• ⢌ BrailleDots348
• ⢍ BrailleDots1348
• ⢎ BrailleDots2348
• ⢏ BrailleDots12348
• ⢐ BrailleDots58
• ⢑ BrailleDots158
• ⢒ BrailleDots258
• ⢓ BrailleDots1258
• ⢔ BrailleDots358
• ⢕ BrailleDots1358
• ⢖ BrailleDots2358
• ⢗ BrailleDots12358
• ⢘ BrailleDots458
• ⢙ BrailleDots1458
• ⢚ BrailleDots2458
• ⢛ BrailleDots12458
• ⢜ BrailleDots3458
• ⢝ BrailleDots13458
• ⢞ BrailleDots23458
• ⢟ BrailleDots123458
• ⢠ BrailleDots68
• ⢡ BrailleDots168
• ⢢ BrailleDots268
• ⢣ BrailleDots1268
• ⢤ BrailleDots368
• ⢥ BrailleDots1368
• ⢦ BrailleDots2368
• ⢧ BrailleDots12368
• ⢨ BrailleDots468
• ⢩ BrailleDots1468
• ⢪ BrailleDots2468
• ⢫ BrailleDots12468
• ⢬ BrailleDots3468
• ⢭ BrailleDots13468
• ⢮ BrailleDots23468
• ⢯ BrailleDots123468
• ⢰ BrailleDots568
• ⢱ BrailleDots1568
• ⢲ BrailleDots2568
• ⢳ BrailleDots12568
• ⢴ BrailleDots3568
• ⢵ BrailleDots13568
• ⢶ BrailleDots23568
• ⢷ BrailleDots123568
• ⢸ BrailleDots4568
• ⢹ BrailleDots14568
• ⢺ BrailleDots24568
• ⢻ BrailleDots124568
• ⢼ BrailleDots34568
• ⢽ BrailleDots134568
• ⢾ BrailleDots234568
• ⢿ BrailleDots1234568
• ⣀ BrailleDots78
• ⣁ BrailleDots178
• ⣂ BrailleDots278
• ⣃ BrailleDots1278
• ⣄ BrailleDots378
• ⣅ BrailleDots1378
• ⣆ BrailleDots2378
• ⣇ BrailleDots12378
• ⣈ BrailleDots478
• ⣉ BrailleDots1478
• ⣊ BrailleDots2478
• ⣋ BrailleDots12478
• ⣌ BrailleDots3478
• ⣍ BrailleDots13478
• ⣎ BrailleDots23478
• ⣏ BrailleDots123478
• ⣐ BrailleDots578
• ⣑ BrailleDots1578
• ⣒ BrailleDots2578
• ⣓ BrailleDots12578
• ⣔ BrailleDots3578
• ⣕ BrailleDots13578
• ⣖ BrailleDots23578
• ⣗ BrailleDots123578
• ⣘ BrailleDots4578
• ⣙ BrailleDots14578
• ⣚ BrailleDots24578
• ⣛ BrailleDots124578
• ⣜ BrailleDots34578
• ⣝ BrailleDots134578
• ⣞ BrailleDots234578
• ⣟ BrailleDots1234578
• ⣠ BrailleDots678
• ⣡ BrailleDots1678
• ⣢ BrailleDots2678
• ⣣ BrailleDots12678
• ⣤ BrailleDots3678
• ⣥ BrailleDots13678
• ⣦ BrailleDots23678
• ⣧ BrailleDots123678
• ⣨ BrailleDots4678
• ⣩ BrailleDots14678
• ⣪ BrailleDots24678
• ⣫ BrailleDots124678
• ⣬ BrailleDots34678
• ⣭ BrailleDots134678
• ⣮ BrailleDots234678
• ⣯ BrailleDots1234678
• ⣰ BrailleDots5678
• ⣱ BrailleDots15678
• ⣲ BrailleDots25678
• ⣳ BrailleDots125678
• ⣿ BrailleDots12345678
• ⣸ BrailleDots45678
• ⣴ BrailleDots35678
• ⣼ BrailleDots345678
• ⣾ BrailleDots2345678
• ⣷ BrailleDots1235678
• ⣵ BrailleDots135678
• ⣽ BrailleDots1345678
• ⣻ BrailleDots1245678
• ⣹ BrailleDots145678
• ⣺ BrailleDots245678
• Sextants characters
• Octants characters

hints

The hints system allows you to quickly interact with text patterns in your terminal by displaying keyboard shortcuts over matching content. When activated, Rio scans the visible terminal content for configured patterns and displays keyboard shortcuts over each match.

For detailed information about the hints system, see the Hints feature documentation.

Basic Configuration

[hints]
# Characters used for hint labels
alphabet = "jfkdls;ahgurieowpq"

# URL hint example
[[hints.rules]]
regex = "(https://|http://)[^\u{0000}-\u{001F}\u{007F}-\u{009F}<>\"\\s{-}\\^⟨⟩`\\\\]+"
hyperlinks = true
post-processing = true
persist = false

[hints.rules.action]
command = "xdg-open"  # Linux/BSD
# command = "open"    # macOS
# command = { program = "cmd", args = ["/c", "start", ""] }  # Windows

[hints.rules.binding]
key = "O"
mods = ["Control", "Shift"]

Configuration Options

• alphabet: String of characters used for hint labels
• regex: Regular expression pattern to match
• hyperlinks: Whether to treat matches as hyperlinks
• post-processing: Apply post-processing to clean up matched text
• persist: Keep hint mode active after selection

Actions

Built-in actions:

• "Copy" - Copy to clipboard
• "Paste" - Paste the matched text
• "Select" - Select the matched text

External commands:

[hints.rules.action]
command = "xdg-open"  # Simple command
# Or with arguments:
command = { program = "code", args = ["--goto"] }

Key Bindings and Mouse Support

[hints.rules.binding]
key = "O"
mods = ["Control", "Shift"]

[hints.rules.mouse]
enabled = true
mods = ["Control"]  # Optional modifier keys

ignore-selection-foreground-color

Default is false

ignore-selection-foreground-color = false

keyboard

• disable-ctlseqs-alt - Disable ctlseqs with ALT keys

  • Useful for example if you would like Rio to replicate Terminal.app, since it does not deal with ctlseqs with ALT keys

• ime-cursor-positioning - Enable IME cursor positioning (default: true)

  • When enabled, IME input popups (like emoji picker, character viewer, or CJK input methods) will appear precisely at the cursor position
  • Improves input experience for languages that require IME (Chinese, Japanese, Korean, etc.)
  • Automatically updates position when cursor moves via keyboard, mouse, or any other method
  • Set to false to use system default IME positioning behavior

Example:

[keyboard]
disable-ctlseqs-alt = false
ime-cursor-positioning = true

line-height

Default is 1.0.

Note: It cannot be settled as any value under 1.0.

line-height = 1.5

hide-mouse-cursor-when-typing

Default is false

hide-mouse-cursor-when-typing = false

navigation

navigation.mode

Rio has multiple styles of showing navigation/tabs.

Tab

Tab is the default navigation mode.

Usage:

[navigation]
mode = "Tab"

NativeTab (MacOS only)

Usage:

[navigation]
mode = "NativeTab"

Plain

Plain navigation mode will simply turn off any tab key binding.

This mode is perfect if you use Rio terminal with tmux or zellij.

Usage:

[navigation]
mode = "Plain"

navigation.use-split

Enable split feature. It is enabled by default.

[navigation]
use-split = true

navigation.unfocused-split-opacity

The opacity level (opposite of transparency) of an unfocused split. Unfocused splits are faded out by default to make it easier to see which split is focused. To disable this feature, set this value to 1.

A value of 1 is fully opaque and a value of 0 is fully transparent. Because 0 is not useful (it makes the split look very weird), the minimum value is 0.15. A value outside of 0.15..=1 is clamped to the nearest valid value.

Default is 0.7.

[navigation]
unfocused-split-opacity = 0.7

navigation.unfocused-split-fill

The color used to dim an unfocused split. Unfocused splits are dimmed by rendering a semi-transparent rectangle over the split; this option sets the color of that rectangle. The alpha of the overlay is derived from navigation.unfocused-split-opacity — this field is an RGB tint only.

Defaults to the terminal's background color. Specified as a hex string (#RRGGBB or RRGGBB).

[navigation]
unfocused-split-fill = "#000000"

navigation.open-config-with-split

Enable split for open configuration file.

navigation.hide-if-single

The property hide-if-single hides navigation UI if there is only one tab. It does not work for NativeTab.

Default is true.

[navigation]
hide-if-single = true

navigation.current-working-directory

Use same path whenever a new tab is created (Note: requires use-fork to be set to false).

option-as-alt

This config only works on MacOS.

Possible choices: both, left and right.

option-as-alt = 'left'

padding

Define outer padding around the entire window/tab area using CSS-like syntax (default is [10])

# Apply 10px to all sides
padding = [10]

# top and bottom: 10px, right and left: 5px
padding = [10, 5]

# top: 10px, right: 5px, bottom: 15px, left: 20px
padding = [10, 5, 15, 20]

panel

Configure panel layout when using splits (vertical/horizontal terminal splits).

panel.padding

Define inner padding inside each panel (around terminal content). Default is [5]

[panel]
# Apply 5px padding inside all panels
padding = [5]

# Different padding: top/bottom: 10px, left/right: 5px
padding = [10, 5]

panel.row-gap

Define vertical spacing between panels when split vertically (down). Default is 0

[panel]
row-gap = 10  # 10px vertical gap between panels

panel.column-gap

Define horizontal spacing between panels when split horizontally (right). Default is 0

[panel]
column-gap = 15  # 15px horizontal gap between panels

panel.border-width

Define the border width around each panel. Default is 2.0

[panel]
border-width = 2.0  # 2px border around panels

panel.border-radius

Define the corner radius for panel borders. Default is 0.0 (sharp corners).

[panel]
border-radius = 8.0  # 8px rounded corners

Full panel example

[panel]
padding = [5]       # Inner padding inside each panel
row-gap = 10        # Vertical gap when split down
column-gap = 15     # Horizontal gap when split right
border-width = 2.0  # Border width around panels
border-radius = 0.0 # Corner radius (0 = sharp)

platform

Rio allows you to have different configurations per OS. You can override Shell, Navigation, Renderer, Window, env-vars, and theme on a per-platform basis.

Field-Level Merging

Platform overrides use field-level merging for Window, Navigation, and Renderer configurations. This means you only need to specify the fields you want to override - other fields will be preserved from the global configuration.

Example (only overriding window mode and opacity):

[window]
width = 1024
height = 768
opacity = 0.75

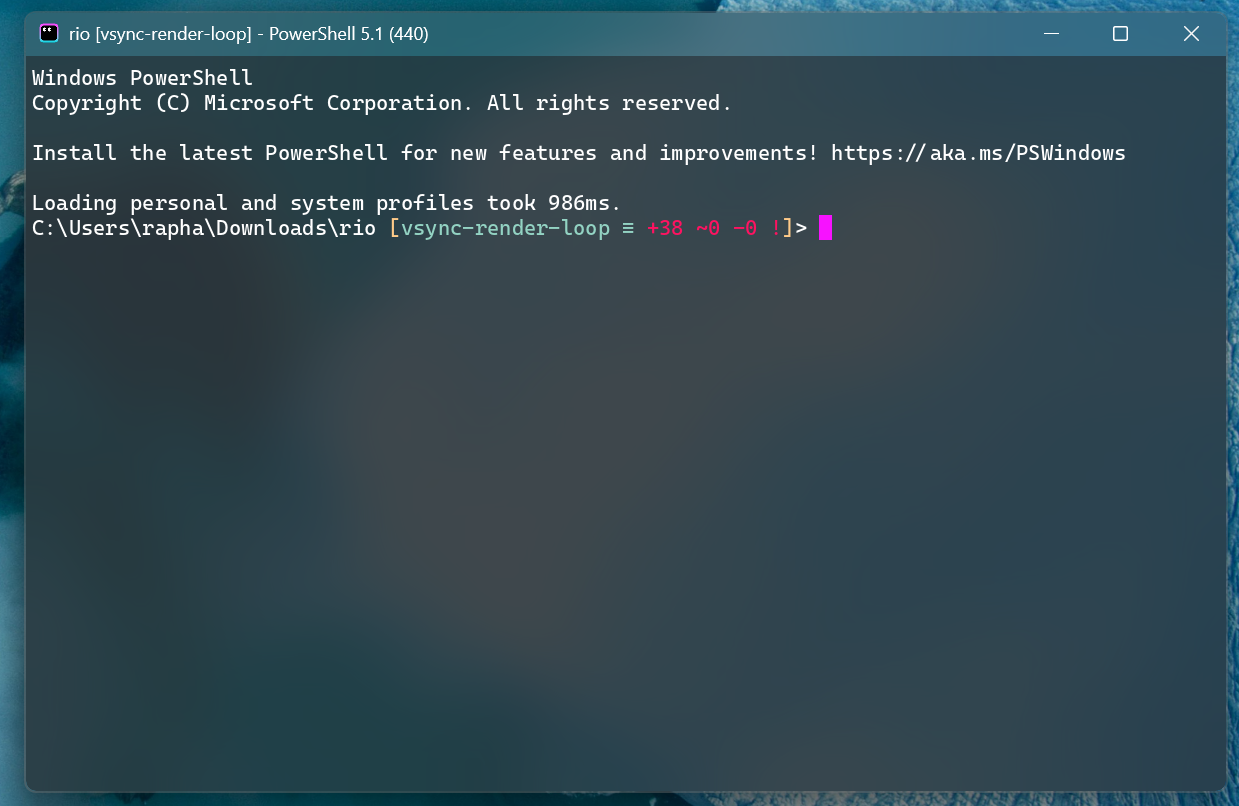

blur = true

[platform]
# On macOS, only override the mode - width, height, opacity, and blur are preserved
macos.window.mode = "Maximized"

Shell Configuration

Shell configuration uses complete replacement - if you specify a platform-specific shell, you must provide the complete shell configuration:

[shell]
program = "/bin/fish"
args = ["--login"]

[platform]
# Shell is completely replaced on Windows
windows.shell = { program = "pwsh", args = ["-l"] }

# Shell is completely replaced on Linux
linux.shell = { program = "tmux", args = ["new-session", "-c", "/var/www"] }

Platform-Specific Environment Variables

You can define platform-specific environment variables that are appended to your global env-vars:

env-vars = ["GLOBAL_VAR=value"]

[platform]
macos.env-vars = ["MACOS_SPECIFIC=yes"]
linux.env-vars = ["LINUX_SPECIFIC=yes"]
windows.env-vars = ["WINDOWS_SPECIFIC=yes"]

Platform-Specific Themes

Override the theme on specific platforms:

theme = "lucario"

[platform]
macos.theme = "dracula"
linux.theme = "nord"

Complete Example

# Global configuration
theme = "default"
env-vars = ["EDITOR=vim"]

[window]
width = 1024
height = 768
opacity = 0.9

[shell]
program = "/bin/bash"
args = ["--login"]

[platform]
# macOS: Override only specific fields
macos.theme = "dracula"
macos.env-vars = ["HOMEBREW_PREFIX=/opt/homebrew"]
macos.window.opacity = 1.0  # Other window fields preserved
macos.renderer.backend = "Metal"
macos.shell = { program = "/bin/zsh", args = ["-l"] }

# Linux: Different overrides
linux.window.mode = "Maximized"
linux.renderer.backend = "Vulkan"

# Windows: Complete customization
windows.theme = "nord"
windows.env-vars = ["WINDOWS_VAR=value"]
windows.shell = { program = "pwsh", args = ["-NoLogo"] }

renderer.backend

Selects the rendering backend. Sugarloaf ships native backends for Metal (macOS) and Vulkan (Linux); the Webgpu backend goes through wgpu and requires Rio to be built with the wgpu Cargo feature (see Build from source).

• Metal (default on macOS): native Metal backend. Smaller, skips the wgpu translation layer. Does not support RetroArch filters.
• Vulkan (default on Linux): native Vulkan backend on Linux; wgpu Vulkan on other platforms.
• Webgpu (default elsewhere): wgpu umbrella backend — wgpu picks the best available native API (Metal / Vulkan / DX12 / GL / WebGPU). Required to use RetroArch filters.

[renderer]
backend = "Webgpu"

Selecting Webgpu, or Vulkan on a non-Linux platform, requires building with --features wgpu. The native Metal and native Vulkan backends do not include the librashader filter chain — see renderer.filter below.

renderer.disable-unfocused-render

This property disable renderer processes while Rio is unfocused.

Default is false.

[renderer]
disable-unfocused-render = false

renderer.disable-occluded-render

This property disables renderer processes while Rio windows/tabs are occluded (completely hidden from view). This is different from unfocused rendering as it depends on whether the window is minimized, set invisible, or fully occluded by another window.

When a window becomes visible again after being occluded, Rio will automatically render one frame to update the display.

Default is true.

[renderer]
disable-occluded-render = true

renderer.target-fps

This configuration is disabled by default but if isLimits the maximum number of frames per second that rio terminal will attempt to draw on a specific frame per second interval.

[renderer]
target-fps = 120

renderer.filter

Rio allow to configure filters based on RetroArch shaders: github.com/libretro/slang-shaders.

Builtin filters:

• newpixiecrt.
• fubax_vr.

Note: filters require Rio to be built with the wgpu Cargo feature and the Webgpu backend. They do not run on the native Metal (macOS) or native Vulkan (Linux) backends. See RetroArch shaders for details.

[renderer]
filters = [
  # Loads built-in crt
  "NewPixieCrt",

  # Or from a specific path
  "/Users/raphael/Downloads/slang-shaders-master/crt/newpixie-crt.slangp"
]

renderer.strategy

Strategy property defines how Rio will render, by default it follows Event driven (Events), but you can change it to a continuous loop (that will consume more CPU) by changing to Game.

[renderer]
strategy = "events"

renderer.use-cpu

Use the CPU rasterizer (tiny-skia) instead of the GPU pipeline. Useful on systems without working GPU drivers, in virtual machines, or for debugging rendering issues.

This option is experimental. The first version supports solid quads and glyphs only — the following features are not yet implemented on the CPU path:

• Image overlays (Kitty graphics protocol)
• GPU filters (RetroArch / renderer.filters)
• Advanced underline styles
• Corner radii

[renderer]
use-cpu = false

scroll

You can change how many lines are scrolled each time by setting this option. Scroll calculation for canonical mode will be based on lines = (accumulated scroll * multiplier / divider).

If you want a quicker scroll, keep increasing the multiplier. If you want to reduce scroll speed you will need to increase the divider.

You can combine both properties to find the best scroll for you.

• Multiplier default is 3.0.
• Divider default is 1.0.

Example:

[scroll]
multiplier = 3.0
divider = 1.0

enable-scroll-bar

Show an overlay scroll bar when scrolling. The scroll bar appears on scroll and fades out after 2 seconds. It does not change the width of the content and works independently in each panel. The scroll bar is also draggable.

Default is true.

enable-scroll-bar = true

scrollback-history-limit

Maximum number of scrollback history lines retained per panel. Scrollback lets you scroll up to inspect command output that has moved off-screen.

• Raising this keeps more history available at the cost of memory proportional to the total number of cells held in the buffer.
• Setting it to 0 disables scrollback entirely.
• The alt-screen grid (used by full-screen TUIs like vim, less, htop) never keeps scrollback regardless of this value.

Default is 10000.

scrollback-history-limit = 10000

shell

You can set shell.program to the path of your favorite shell, e.g. /bin/fish.

Entries in shell.args are passed unmodified as arguments to the shell.

Default:

• (macOS) user login shell
• (Linux/BSD) user login shell
• (Windows) powershell

Shell Examples

1. MacOS using fish shell from bin path:

[shell]
program = "/bin/fish"
args = ["--login"]

2. Windows using powershell:

[shell]
program = "pwsh"
args = []

3. Windows using powershell with login:

[shell]
program = "pwsh"
args = ["-l"]

4. MacOS with tmux installed by homebrew:

[shell]
program = "/opt/homebrew/bin/tmux"
args = ["new-session", "-c", "/var/www"]

theme

The configuration property theme is used for specifying the theme. Rio will look in the themes folder for the theme.

You can see common paths for the themes directory here:

Note: Remember to replace "YOUR_USERNAME" with your actual user name.

Platform	Path
Mac	/Users/YOUR_USERNAME/.config/rio/themes
Linux	/home/YOUR_USERNAME/.config/rio/themes
Windows	C:\Users\YOUR_USERNAME\AppData\Local\rio\themes

In the example below, we will setup the Dracula theme for Rio. The theme can be downloaded from github.com/dracula/rio-terminal.

After downloading the dracula.toml file, move it inside the folder themes in the configuration folder.

#  ~/.config/rio/config.toml
theme = "dracula"

It should look like this:

Another option would be to install the Lucario color scheme for Rio terminal, by moving the downloaded file to ~/.config/rio/themes/lucario.toml and setting the theme property:

#  ~/.config/rio/config.toml
theme = "lucario"

You can find more than 250 themes for Rio terminal in this repository: mbadolato/iTerm2-Color-Schemes/tree/master/rio.

Building your own theme

Building your own theme for Rio is very straightforward.

Simply create a new theme file in your configuration themes folder (E.g. ~/.config/rio/themes/foobar.toml) and choose your preferred colors:

Note: Missing fields will use the default for Rio.

# ~/.config/rio/themes/foobar.toml

[colors]
background = ""
foreground = ""

# Selection
selection-background = ""
selection-foreground = ""

# Navigation
tabs = ""
tabs-active = ""
bar = ""
split = ""
cursor = ""
vi-cursor = ""

# Search
search-match-background = ""
search-match-foreground = ""
search-focused-match-background = ""
search-focused-match-foreground = ""

# Regular colors
black = ""
blue = ""
cyan = ""
green = ""
magenta = ""
red = ""
tabs = ""
white = ""
yellow = ""

# Dim colors
dim-black = ""
dim-blue = ""
dim-cyan = ""
dim-foreground = ""
dim-green = ""
dim-magenta = ""
dim-red = ""
dim-white = ""
dim-yellow = ""

# Light colors
light-black = ""
light-blue = ""
light-cyan = ""
light-foreground = ""
light-green = ""
light-magenta = ""
light-red = ""
light-white = ""
light-yellow = ""

After that all you have to do is set the theme property in your configuration file.

# ~/.config/rio/config.toml
theme = "foobar"

Proud of your new theme? Why not share it on the Rio Discord!

title.content

Configure window title using template.

Default on macOS/Linux: {{ title || relative_path }} Default on Windows: {{ title || program }}

Note: Variables are not case sensitive.

Possible options:

• TITLE: terminal title via OSC sequences for setting terminal title
• PROGRAM: (e.g fish, zsh, bash, vim, etc...)
• ABSOLUTE_PATH: (e.g /Users/rapha/Documents/a/rio)
• RELATIVE_PATH: home-relative path, shortened when deep (e.g ~/Documents/a/rio or …/a/psone/starpsx)
• COLUMNS: current columns
• LINES: current lines

Example 1:

[title]
content = "{{ PROGRAM }} - {{ ABSOLUTE_PATH }}"

Result: fish - .../Documents/a/rio.

Example 2:

[title]
content = "{{ program }} ({{columns}}x{{lines}})"

Result: fish (85x23).

Example 3:

You can use || operator, in case the value is empty or non-existent it will use the following:

[title]
content = "{{ TITLE || RELATIVE_PATH }}"

In this case, TITLE is non-existent so will use RELATIVE_PATH.

Result: ~/Documents/a/rio

title.placeholder

Configure initial title.

[title]
placeholder = "▲"

use-fork

Defaults for POSIX-based systems (Windows is not configurable):

• MacOS: spawn processes
• Linux/BSD: fork processes

use-fork = false

window.width

Define the initial window width.

• Default: 600

Example:

[window]
width = 600

window.height

Define the initial window height.

• Default: 400

Example:

[window]
height = 400

window.columns

Define the initial number of columns. When set, this takes precedence over window.width.

• Default: not set
• Works independently from window.rows (you can set only columns).
• Invalid value 0 is ignored and Rio falls back to window.width.

Example:

[window]
columns = 80

window.rows

Define the initial number of rows. When set, this takes precedence over window.height.

• Default: not set
• Works independently from window.columns (you can set only rows).
• Invalid value 0 is ignored and Rio falls back to window.height.

Example:

[window]
rows = 24

window.mode

Define how the window will be created

• Windowed (default) is based on width and height
• Maximized window is created with maximized
• Fullscreen window is created with fullscreen

Example:

[window]
mode = "Windowed"

window.opacity

Set window background opacity.

• Default: 1.0.

Example:

[window]
opacity = 0.5

window.blur

Set blur on the window background. Changing this config requires restarting Rio to take effect.

• Default: false.

[window]
blur = false

Using blur and background opacity:

[window]
opacity = 0.5
decorations = "enabled"
blur = true

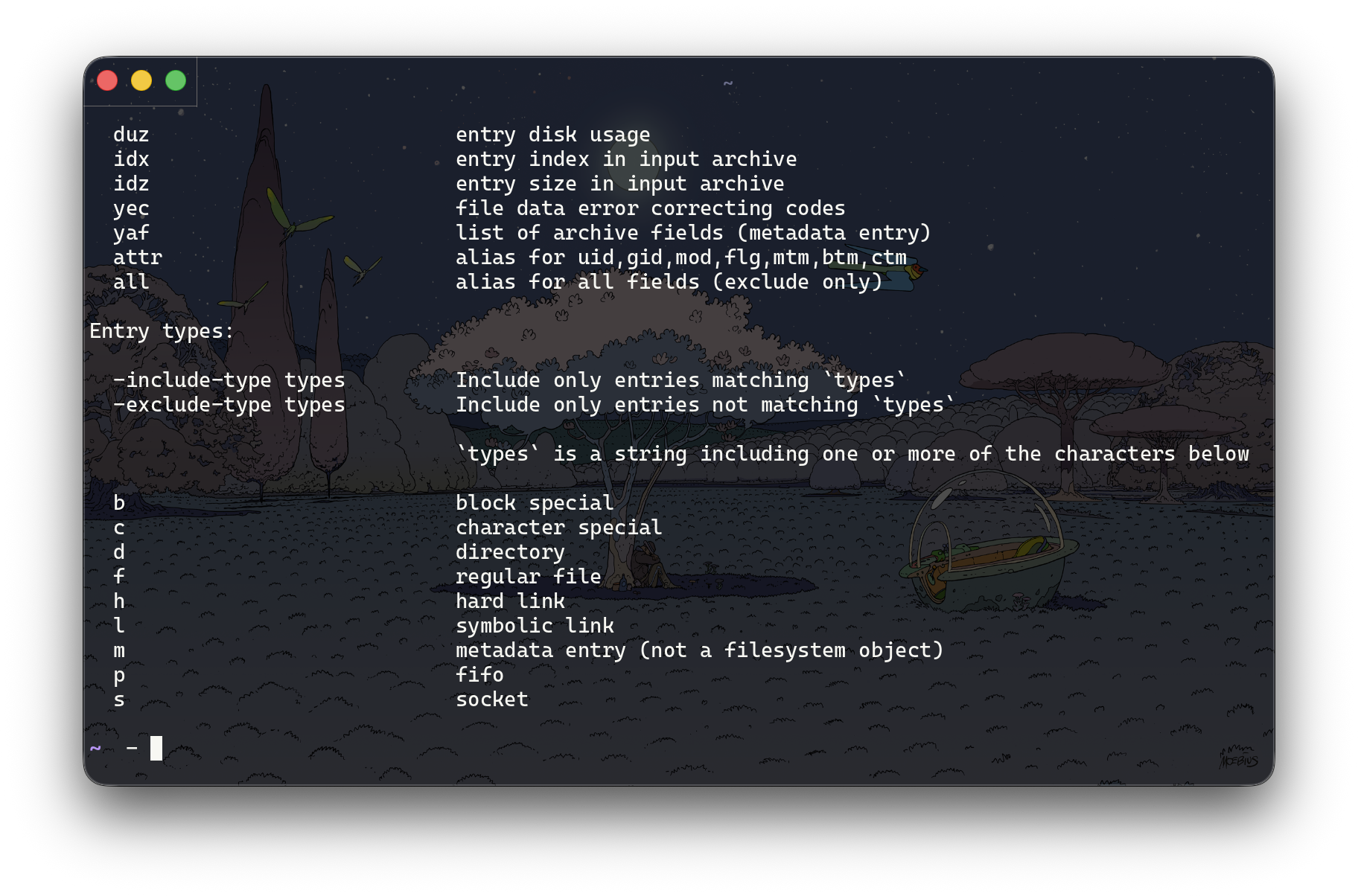

window.background-image

Set an image as the window background. The image is uploaded once into a dedicated GPU texture sized to the source dimensions and stretched to cover the full window.

• Default: None

Fields

• path — required, absolute path to a PNG/JPG/etc.
• opacity — 0.0–1.0, default 1.0. Multiplied into the image's alpha channel before upload, so a lower value lets the terminal background bleed through.

[window.background-image]
path = "/Users/hugoamor/Desktop/musashi.png"
opacity = 0.5

window.decorations

Set window decorations.

• Enabled (default for Windows/Linux/BSD/macOS) enable window decorations.
• Disabled disable all window decorations.
• Transparent window decorations with transparency.
• Buttonless remove buttons from window decorations.

Example:

[window]
decorations = "Enabled"

window.macos-use-unified-titlebar

You can use MacOS unified titlebar by config, it's disabled by default.

[window]
macos-use-unified-titlebar = false

window.macos-use-shadow

You can enable window shadow on MacOS by config, it's disabled by default.

[window]
macos-use-shadow = true

window.macos-traffic-light-position-x

Customize the horizontal position of macOS traffic light buttons (close, minimize, maximize). Position is specified in points from the left edge of the window.

Note: This setting is ignored when navigation mode is set to "Tab" as the traffic lights are positioned automatically for that mode.

[window]
macos-traffic-light-position-x = 9.0

window.macos-traffic-light-position-y

Customize the vertical position of macOS traffic light buttons (close, minimize, maximize). Position is specified in points from the top edge of the window.

Note: This setting is ignored when navigation mode is set to "Tab" as the traffic lights are positioned automatically for that mode.

[window]
macos-traffic-light-position-y = 9.0

window.windows-corner-preference

Describes how the corners of a Microsoft Windows window should look like.

Options: Default, DoNotRound,Round and RoundSmall

[window]
windows-corner-preference = "Round"

window.windows-use-undecorated-shadow

Microsoft Windows specific.

Shows or hides the background drop shadow for undecorated windows.

[window]
windows-use-undecorated-shadow = false

window.windows-use-no-redirection-bitmap

Microsoft Windows specific.

This sets WS_EX_NOREDIRECTIONBITMAP.

[window]
windows-use-no-redirection-bitmap = false

working-dir

Directory the shell is started in. If this is unset, the working directory of the parent process will be used.

This configuration only works if use-fork is disabled.

working-dir = '/Users/raphael/Documents/'
