Configuration
The configuration should be the following paths otherwise Rio will use the default configuration.
MacOS configuration file path is ~/.config/rio/config.toml.
Linux configuration file path is $XDG_CONFIG_HOME/rio/config.toml or ~/.config/rio/config.toml.
Windows configuration file path is %USERPROFILE%\AppData\Local\rio\config.toml or $env:USERPROFILE\AppData\Local\rio\config.toml(PowerShell).
You can also set a custom config path by using the $RIO_CONFIG_HOME env var. It will be used as a replacement
for ~/.config/rio reading configs, themes...
Updates to the configuration file automatically triggers Rio to render the terminal with the new configuration.
Note that all parameters without a header must be at the beginning of the file, otherwise they will be ignored. Example:
[editor]
program = "vi"
args = []
theme = "dracula" # won't work, because it's under the `editor` header
theme = "dracula" # will work
[editor]
program = "vi"
args = []
adaptive-theme
Rio supports adaptive themes that automatically switch between light and dark themes based on the system theme. This feature works on Web, MacOS, and Windows platforms.
[adaptive-theme]
light = "belafonte-day"
dark = "belafonte-night"
When configured, Rio will automatically switch between the specified light and dark themes based on your system's current theme setting.
colors
Defining colors in the configuration file will not have any effect if you're using a theme.
The default configuration is without a theme.
Example:
[colors]
# Regular colors
background = '#0F0D0E'
black = '#4C4345'
blue = '#006EE6'
cyan = '#88DAF2'
foreground = '#F9F4DA'
green = '#0BA95B'
magenta = '#7B5EA7'
red = '#ED203D'
white = '#F1F1F1'
yellow = '#FCBA28'
# Cursor
cursor = '#F712FF'
vi-cursor = '#12d0ff'
# Navigation
tabs = '#cccccc' # Inactive tab text and border color
tabs-active = '#ffffff' # Active tab text color
bar = '#1b1a1a'
split = '#292527'
# Search
search-match-background = '#44C9F0'
search-match-foreground = '#FFFFFF'
search-focused-match-background = '#E6A003'
search-focused-match-foreground = '#FFFFFF'
# Hints
hint-foreground = '#181818'
hint-background = '#f4bf75'
# Selection`
selection-foreground = '#0F0D0E'
selection-background = '#44C9F0'
# Dim colors
dim-black = '#1C191A'
dim-blue = '#0E91B7'
dim-cyan = '#93D4E7'
dim-foreground = '#ECDC8A'
dim-green = '#098749'
dim-magenta = '#624A87'
dim-red = '#C7102A'
dim-white = '#C1C1C1'
dim-yellow = '#E6A003'
# Light colors
light-black = '#ADA8A0'
light-blue = '#44C9F0'
light-cyan = '#7BE1FF'
light-foreground = '#F2EFE2'
light-green = '#0ED372'
light-magenta = '#9E88BE'
light-red = '#F25E73'
light-white = '#FFFFFF'
light-yellow = '#FDF170'
You can also specify RGBA with hex, for example: #43ff64d9.
confirm-before-quit
Require confirmation before quitting (Default: true).
confirm-before-quit = true
cursor
By default, the cursor shape is set to block. You can also choose from other options like underline and beam.
Additionally, you can enable or disable cursor blinking, which is set to false by default.
Shape
Options: 'block', 'underline', 'beam'
[cursor]
shape = 'block'
Blinking
Enable/disable blinking (default: false)
[cursor]
blinking = false
Blinking-interval
Set cursor blinking interval (default: 800, only configurable from 350ms to 1200ms).
[cursor]
blinking-interval = 800
bell
Configure the terminal bell behavior. The bell can be triggered by applications using the BEL control character (ASCII 7).
Visual
Enable or disable the visual bell. When enabled, the screen will flash instead of playing a sound.
Default is false.
[bell]
visual = false
Audio
Enable or disable the audio bell. When enabled, a sound will play when the bell is triggered.
Default behavior:
- macOS:
true(uses system notification sound) - Windows:
true(uses system notification sound) - Linux/BSD:
false(requiresaudiofeature during compilation)
[bell]
audio = true
On Linux and BSD systems, audio bell support requires Rio to be compiled with the audio feature flag. Distribution packages typically don't include this feature to minimize dependencies. See Build from source for compilation instructions with audio support.
developer
This property enables log level filter and file. The default level is "OFF" and the logs are not logged to a file as default. The level may be DEBUG, INFO, TRACE, ERROR, WARN or OFF.
[developer]
log-level = "OFF"
enable-log-file = false
The default log file is located at ~/.config/rio/log/rio.log.
If you have any suggestion of configuration ideas to Rio, please feel free to open an issue.
draw-bold-text-with-light-colors
Default is false
draw-bold-text-with-light-colors = false
editor
This setting specifies the editor Rio will use to open the configuration file. By default, the editor is set to vi.
Whenever the key binding OpenConfigEditor is triggered, Rio will use the configured editor and the path to the Rio configuration file.
For example, if you have VS Code installed and want to use it as your editor, the configuration would look like this:
[editor]
program = "code"
args = []
When OpenConfigEditor is triggered, it will execute the command:
$ code <path-to-rio-configuration-file>.
If you set a value for program, Rio will look for it in the default system application directory (/usr/bin on Linux and macOS). If your desired editor is not in this directory, you must specify its full path:
[editor]
program = "/usr/local/bin/code"
args = []
env-vars
Sets environment variables.
Example:
env-vars = ["FIRST_VARIABLE_NAME=123", "SECOND_VARIABLE_NAME=456"]
fonts
The font configuration default:
[fonts]
size = 18
features = []
use-drawable-chars = true
symbol-map = []
disable-warnings-not-found = false
additional-dirs = []
[fonts.regular]
family = "cascadiacode"
style = "Normal"
width = "Normal"
weight = 400
[fonts.bold]
family = "cascadiacode"
style = "Normal"
width = "Normal"
weight = 800
[fonts.italic]
family = "cascadiacode"
style = "Italic"
width = "Normal"
weight = 400
[fonts.bold-italic]
family = "cascadiacode"
style = "Italic"
width = "Normal"
weight = 800
fonts.disable-warnings-not-found
Disables warnings regarding fonts not found. Default it false.
fonts.disable-warnings-not-found = false
fonts.family
Note: You can set different font families but Rio terminal will always look for regular font bounds whene
You can also set family on root to overwrite all fonts.
fonts.family = "cascadiacode"
fonts.extras
You can also specify extra fonts to load:
fonts.extras = [{ family = "Microsoft JhengHei" }]
fonts.features
In case you want to specify any font feature:
fonts.features = ["ss02", "ss03", "ss05", "ss19"]
Note: Font features do not have support to live reload on configuration, so to reflect your changes, you will need to close and reopen Rio.
fonts.emojis
You can also specify which emoji font you would like to use, by default will be loaded a built-in Twemoji color by Mozilla.
In case you would like to change:
# Apple
# [fonts.emoji]
# family = "Apple Color Emoji"
# In case you have Noto Color Emoji installed
# [fonts.emoji]
# family = "Noto Color Emoji"
fonts.hinting
Enable or disable font hinting. It is enabled by default.
fonts.hinting = true
fonts.symbol-map
Has no default values. Example values are shown below:
fonts.symbol-map = [
# covers: '⊗','⊘','⊙'
{ start = "2297", end = "2299", font-family = "Cascadia Code NF" }
]
Map the specified Unicode codepoints to a particular font. Useful if you need special rendering for some symbols, such as for Powerline. Avoids the need for patched fonts.
In case you would like to map many codepoints:
fonts.symbol-map = [
{ start = "E0A0", end = "E0A3", font-family = "PowerlineSymbols" },
{ start = "E0C0", end = "E0C7", font-family = "PowerlineSymbols" }
]
fonts.use-drawable-chars
When set true, Rio terminal will use built-in draw system for specific set of characters (including box drawing characters (Unicode points U+2500 - U+259F), legacy computing symbols (U+1FB00 - U+1FB3B), and powerline symbols (U+E0B0 - U+E0BF)).
fonts.use-drawable-chars = true
The list of characters
─Horizontal═DoubleHorizontal│Vertical║DoubleVertical━HeavyHorizontal┃HeavyVertical└TopRight┘TopLeft┌BottomRight┐BottomLeft┼Cross├VerticalRight┤VerticalLeft┬HorizontalDown┴HorizontalUp╥DownDoubleAndHorizontalSingle╤DownSingleAndHorizontalDouble╘UpSingleAndRightDouble╛UpSingleAndLeftDouble╪VerticalSingleAndHorizontalDouble╚DoubleUpAndRight╝DoubleUpAndLeft╯ArcTopLeft╭ArcBottomRight╮ArcBottomLeft╰ArcTopRight▂LowerOneQuarterBlock▁LowerOneEighthBlock▃LowerThreeEighthsBlock▎LeftOneQuarterBlock▍LeftThreeEighthsBlock▊LeftThreeQuartersBlock▕RightOneQuarterBlock🮈RightThreeEighthsBlock🮊RightThreeQuartersBlock▔UpperOneEighthBlock🮃UpperThreeEighthsBlock🮅UpperThreeQuartersBlock┄HorizontalLightDash┅HorizontalHeavyDash┈HorizontalLightDoubleDash┉HorizontalHeavyDoubleDash╌HorizontalLightTripleDash╍HorizontalHeavyTripleDash┆VerticalLightDash┇VerticalHeavyDash┊VerticalLightDoubleDash┋VerticalHeavyDoubleDash╎VerticalLightTripleDash╏VerticalHeavyTripleDash▘QuadrantUpperLeft▝QuadrantUpperRight▖QuadrantLowerLeft▗QuadrantLowerRight▀UpperHalf▄LowerHalf▌LeftHalf▐RightHalf░LightShade▒MediumShade▓DarkShade█FullBlock╬- DoubleCross╠- DoubleVerticalRight╣- DoubleVerticalLeft╦- DoubleHorizontalDown╩- DoubleHorizontalUp╫- VerticalDoubleAndHorizontalSingle╓- DownDoubleAndRightSingle╖- DownDoubleAndLeftSingle╟- VerticalDoubleAndRightSingle╢- VerticalDoubleAndLeftSingle╞- VerticalSingleAndRightDouble╡- VerticalSingleAndLeftDouble╒- DownSingleAndRightDouble╕- DownSingleAndLeftDouble┏- HeavyDownAndRight┓- HeavyDownAndLeft┗- HeavyUpAndRight┛- HeavyUpAndLeft┣- HeavyVerticalAndRight┫- HeavyVerticalAndLeft┳- HeavyHorizontalAndDown┻- HeavyHorizontalAndUp╋- HeavyCross┍- LightDownAndHeavyRight┑- LightDownAndHeavyLeft┎- HeavyDownAndLightRight┒- HeavyDownAndLightLeft┕- LightUpAndHeavyRight┙- LightUpAndHeavyLeft┖- HeavyUpAndLightRight┚- HeavyUpAndLightLeft▅- LowerFiveEighthsBlock▆- LowerThreeQuartersBlock▇- LowerSevenEighthsBlock▚- QuadrantUpperLeftAndLowerLeft▞- QuadrantUpperLeftAndLowerRight▟- QuadrantUpperRightAndLowerLeft▙- QuadrantUpperRightAndLowerRight🬁- SextantUpperLeft🬂- SextantUpperMiddle🬃- SextantUpperRight🬄- SextantLowerLeft🬅- SextantLowerMiddle🬆- SextantLowerRight🬉- SeparatedSextantUpperLeft🬊- SeparatedSextantUpperMiddle🬋- SeparatedSextantUpperRight🬌- SeparatedSextantLowerLeft🬍- SeparatedSextantLowerMiddle🬎- SeparatedSextantLowerRight🬓- SeparatedQuadrantUpperLeft🬔- SeparatedQuadrantUpperRight🬕- SeparatedQuadrantLowerLeft🬖- SeparatedQuadrantLowerRight╱- DiagonalRisingBar╲- DiagonalFallingBar╳- DiagonalCrossPowerlineLeftSolidPowerlineRightSolidPowerlineLeftHollowPowerlineRightHollowPowerlineCurvedRightSolidPowerlineCurvedRightHollowPowerlineCurvedLeftSolidPowerlineCurvedLeftHollow\ue0b8PowerlineLowerLeftTriangle\ue0b9PowerlineBackslashSeparator\ue0baPowerlineLowerRightTriangle\ue0bbPowerlineForwardslashSeparator\ue0bcPowerlineUpperLeftTriangle\ue0bdPowerlineForwardslashSeparatorRedundant\ue0bePowerlineUpperRightTriangle\ue0bfPowerlineBackslashSeparatorRedundant⠀BrailleBlank⠁BrailleDots1⠂BrailleDots2⠃BrailleDots12⠄BrailleDots3⠅BrailleDots13⠆BrailleDots23⠇BrailleDots123⠈BrailleDots4⠉BrailleDots14⠊BrailleDots24⠋BrailleDots124⠌BrailleDots34⠍BrailleDots134⠎BrailleDots234⠏BrailleDots1234⠐BrailleDots5⠑BrailleDots15⠒BrailleDots25⠓BrailleDots125⠔BrailleDots35⠕BrailleDots135⠖BrailleDots235⠗BrailleDots1235⠘BrailleDots45⠙BrailleDots145⠚BrailleDots245⠛BrailleDots1245⠜BrailleDots345⠝BrailleDots1345⠞BrailleDots2345⠟BrailleDots12345⠠BrailleDots6⠡BrailleDots16⠢BrailleDots26⠣BrailleDots126⠤BrailleDots36⠥BrailleDots136⠦BrailleDots236⠧BrailleDots1236⠨BrailleDots46⠩BrailleDots146⠪BrailleDots246⠫BrailleDots1246⠬BrailleDots346⠭BrailleDots1346⠮BrailleDots2346⠯BrailleDots12346⠰BrailleDots56⠱BrailleDots156⠲BrailleDots256⠳BrailleDots1256⠴BrailleDots356⠵BrailleDots1356⠶BrailleDots2356⠷BrailleDots12356⠸BrailleDots456⠹BrailleDots1456⠺BrailleDots2456⠻BrailleDots12456⠼BrailleDots3456⠽BrailleDots13456⠾BrailleDots23456⠿BrailleDots123456⡀BrailleDots7⡁BrailleDots17⡂BrailleDots27⡃BrailleDots127⡄BrailleDots37⡅BrailleDots137⡆BrailleDots237⡇BrailleDots1237⡈BrailleDots47⡉BrailleDots147⡊BrailleDots247⡋BrailleDots1247⡌BrailleDots347⡍BrailleDots1347⡎BrailleDots2347⡏BrailleDots12347⡐BrailleDots57⡑BrailleDots157⡒BrailleDots257⡓BrailleDots1257⡔BrailleDots357⡕BrailleDots1357⡖BrailleDots2357⡗BrailleDots12357⡘BrailleDots457⡙BrailleDots1457⡚BrailleDots2457⡛BrailleDots12457⡜BrailleDots3457⡝BrailleDots13457⡞BrailleDots23457⡟BrailleDots123457⡠BrailleDots67⡡BrailleDots167⡢BrailleDots267⡣BrailleDots1267⡤BrailleDots367⡥BrailleDots1367⡦BrailleDots2367⡧BrailleDots12367⡨BrailleDots467⡩BrailleDots1467⡪BrailleDots2467⡫BrailleDots12467⡬BrailleDots3467⡭BrailleDots13467⡮BrailleDots23467⡯BrailleDots123467⡰BrailleDots567⡱BrailleDots1567⡲BrailleDots2567⡳BrailleDots12567⡴BrailleDots3567⡵BrailleDots13567⡶BrailleDots23567⡷BrailleDots123567⡸BrailleDots4567⡹BrailleDots14567⡺BrailleDots24567⡻BrailleDots124567⡼BrailleDots34567⡽BrailleDots134567⡾BrailleDots234567⡿BrailleDots1234567⢀BrailleDots8⢁BrailleDots18⢂BrailleDots28⢃BrailleDots128⢄BrailleDots38⢅BrailleDots138⢆BrailleDots238⢇BrailleDots1238⢈BrailleDots48⢉BrailleDots148⢊BrailleDots248⢋BrailleDots1248⢌BrailleDots348⢍BrailleDots1348⢎BrailleDots2348⢏BrailleDots12348⢐BrailleDots58⢑BrailleDots158⢒BrailleDots258⢓BrailleDots1258⢔BrailleDots358⢕BrailleDots1358⢖BrailleDots2358⢗BrailleDots12358⢘BrailleDots458⢙BrailleDots1458⢚BrailleDots2458⢛BrailleDots12458⢜BrailleDots3458⢝BrailleDots13458⢞BrailleDots23458⢟BrailleDots123458⢠BrailleDots68⢡BrailleDots168⢢BrailleDots268⢣BrailleDots1268⢤BrailleDots368⢥BrailleDots1368⢦BrailleDots2368⢧BrailleDots12368⢨BrailleDots468⢩BrailleDots1468⢪BrailleDots2468⢫BrailleDots12468⢬BrailleDots3468⢭BrailleDots13468⢮BrailleDots23468⢯BrailleDots123468⢰BrailleDots568⢱BrailleDots1568⢲BrailleDots2568⢳BrailleDots12568⢴BrailleDots3568⢵BrailleDots13568⢶BrailleDots23568⢷BrailleDots123568⢸BrailleDots4568⢹BrailleDots14568⢺BrailleDots24568⢻BrailleDots124568⢼BrailleDots34568⢽BrailleDots134568⢾BrailleDots234568⢿BrailleDots1234568⣀BrailleDots78⣁BrailleDots178⣂BrailleDots278⣃BrailleDots1278⣄BrailleDots378⣅BrailleDots1378⣆BrailleDots2378⣇BrailleDots12378⣈BrailleDots478⣉BrailleDots1478⣊BrailleDots2478⣋BrailleDots12478⣌BrailleDots3478⣍BrailleDots13478⣎BrailleDots23478⣏BrailleDots123478⣐BrailleDots578⣑BrailleDots1578⣒BrailleDots2578⣓BrailleDots12578⣔BrailleDots3578⣕BrailleDots13578⣖BrailleDots23578⣗BrailleDots123578⣘BrailleDots4578⣙BrailleDots14578⣚BrailleDots24578⣛BrailleDots124578⣜BrailleDots34578⣝BrailleDots134578⣞BrailleDots234578⣟BrailleDots1234578⣠BrailleDots678⣡BrailleDots1678⣢BrailleDots2678⣣BrailleDots12678⣤BrailleDots3678⣥BrailleDots13678⣦BrailleDots23678⣧BrailleDots123678⣨BrailleDots4678⣩BrailleDots14678⣪BrailleDots24678⣫BrailleDots124678⣬BrailleDots34678⣭BrailleDots134678⣮BrailleDots234678⣯BrailleDots1234678⣰BrailleDots5678⣱BrailleDots15678⣲BrailleDots25678⣳BrailleDots125678⣿BrailleDots12345678⣸BrailleDots45678⣴BrailleDots35678⣼BrailleDots345678⣾BrailleDots2345678⣷BrailleDots1235678⣵BrailleDots135678⣽BrailleDots1345678⣻BrailleDots1245678⣹BrailleDots145678⣺BrailleDots245678- Sextants characters
- Octants characters
hints
The hints system allows you to quickly interact with text patterns in your terminal by displaying keyboard shortcuts over matching content. When activated, Rio scans the visible terminal content for configured patterns and displays keyboard shortcuts over each match.
For detailed information about the hints system, see the Hints feature documentation.
Basic Configuration
[hints]
# Characters used for hint labels
alphabet = "jfkdls;ahgurieowpq"
# URL hint example
[[hints.rules]]
regex = "(https://|http://)[^\u{0000}-\u{001F}\u{007F}-\u{009F}<>\"\\s{-}\\^⟨⟩`\\\\]+"
hyperlinks = true
post-processing = true
persist = false
[hints.rules.action]
command = "xdg-open" # Linux/BSD
# command = "open" # macOS
# command = { program = "cmd", args = ["/c", "start", ""] } # Windows
[hints.rules.binding]
key = "O"
mods = ["Control", "Shift"]
Configuration Options
alphabet: String of characters used for hint labelsregex: Regular expression pattern to matchhyperlinks: Whether to treat matches as hyperlinkspost-processing: Apply post-processing to clean up matched textpersist: Keep hint mode active after selection
Actions
Built-in actions:
"Copy"- Copy to clipboard"Paste"- Paste the matched text"Select"- Select the matched text
External commands:
[hints.rules.action]
command = "xdg-open" # Simple command
# Or with arguments:
command = { program = "code", args = ["--goto"] }
Key Bindings and Mouse Support
[hints.rules.binding]
key = "O"
mods = ["Control", "Shift"]
[hints.rules.mouse]
enabled = true
mods = ["Control"] # Optional modifier keys
ignore-selection-foreground-color
Default is false
ignore-selection-foreground-color = false
keyboard
-
disable-ctlseqs-alt- Disable ctlseqs with ALT keys- Useful for example if you would like Rio to replicate Terminal.app, since it does not deal with ctlseqs with ALT keys
-
ime-cursor-positioning- Enable IME cursor positioning (default:true)- When enabled, IME input popups (like emoji picker, character viewer, or CJK input methods) will appear precisely at the cursor position
- Improves input experience for languages that require IME (Chinese, Japanese, Korean, etc.)
- Automatically updates position when cursor moves via keyboard, mouse, or any other method
- Set to
falseto use system default IME positioning behavior
Example:
[keyboard]
disable-ctlseqs-alt = false
ime-cursor-positioning = true
line-height
Default is 1.0.
Note: It cannot be settled as any value under 1.0.
line-height = 1.5
hide-mouse-cursor-when-typing
Default is false
hide-mouse-cursor-when-typing = false
navigation.mode
Rio has multiple styles of showing navigation/tabs.
Bookmark
Note: The example below is using the Dracula color scheme instead of Rio default colors.
Bookmark is the default navigation mode.
Usage:
[navigation]
mode = "Bookmark"
NativeTab (MacOS only)
Usage:
[navigation]
mode = "NativeTab"
BottomTab
Note: BottomTab does not support click mode yet.
Usage:
[colors]
tabs = "#000000"
[navigation]
mode = "BottomTab"
TopTab
Note: TopTab does not support click mode yet.
Usage:
[colors]
tabs = "#000000"
[navigation]
mode = "TopTab"
Plain
Plain navigation mode will simply turn off any tab key binding.
This mode is perfect if you use Rio terminal with tmux or zellij.
Usage:
[navigation]
mode = "Plain"
navigation.use-split
Enable split feature. It is enabled by default.
[navigation]
use-split = true
navigation.unfocused-split-opacity
Configure opacity on unfocused split.
navigation.unfocused-split-opacity = 0.8
navigation.open-config-with-split
Enable split for open configuration file.
navigation.color-automation
Rio supports specifying the color of tabs using the program and path options.
Note: path is only available for MacOS, BSD and Linux.
[navigation]
color-automation = [
# Set tab to red (#FF0000) when NeoVim is open.
{ program = "nvim", color = "#FF0000" },
# Set tab to green (#00FF00) when in the projects folder
{ path = "/home/YOUR_USERNAME/projects", color = "#00FF00" },
# Set tab to blue (#0000FF) when in the Rio folder AND vim is open
{ program = "vim", path = "/home/YOUR_USERNAME/projects/rio", color = "#0000FF" },
]
Program
The example below sets #FFFF00 as color background whenever nvim is running.
The configuration would be like:
[navigation]
color-automation = [
{ program = "nvim", color = "#FFFF00" }
]
Path
The example below sets #FFFF00 as color background when in the /home/geg/.config/rio path.
Note: path is only available for MacOS, BSD and Linux.
The configuration would be like:
[navigation]
color-automation = [
{ path = "/home/geg/.config/rio", color = "#FFFF00" }
]
Program and path
It is possible to use both path and program at the same time.
The example below sets #FFFF00 as color background when in the /home path and nvim is open.
Note: path is only available for MacOS, BSD and Linux.
The configuration would be like:
[navigation]
color-automation = [
{ program = "nvim", path = "/home", color = "#FFFF00" }
]
navigation.hide-if-single
The property hide-if-single hides navigation UI if there is only one tab. It does not work for NativeTab.
Default is true.
[navigation]
hide-if-single = true
navigation.current-working-directory
Use same path whenever a new tab is created (Note: requires use-fork to be set to false).
option-as-alt
This config only works on MacOS.
Possible choices: both, left and right.
option-as-alt = 'left'
padding
Define outer padding around the entire window/tab area using CSS-like syntax (default is [10])
# Apply 10px to all sides
padding = [10]
# top and bottom: 10px, right and left: 5px
padding = [10, 5]
# top: 10px, right: 5px, bottom: 15px, left: 20px
padding = [10, 5, 15, 20]
panel
Configure panel layout when using splits (vertical/horizontal terminal splits).
panel.padding
Define inner padding inside each panel (around terminal content). Default is [5]
[panel]
# Apply 5px padding inside all panels
padding = [5]
# Different padding: top/bottom: 10px, left/right: 5px
padding = [10, 5]
panel.row-gap
Define vertical spacing between panels when split vertically (down). Default is 0
[panel]
row-gap = 10 # 10px vertical gap between panels
panel.column-gap
Define horizontal spacing between panels when split horizontally (right). Default is 0
[panel]
column-gap = 15 # 15px horizontal gap between panels
panel.border-width
Define the border width around each panel. Default is 2.0
[panel]
border-width = 2.0 # 2px border around panels
panel.border-radius
Define the corner radius for panel borders. Default is 0.0 (sharp corners).
[panel]
border-radius = 8.0 # 8px rounded corners
Full panel example
[panel]
padding = [5] # Inner padding inside each panel
row-gap = 10 # Vertical gap when split down
column-gap = 15 # Horizontal gap when split right
border-width = 2.0 # Border width around panels
border-radius = 0.0 # Corner radius (0 = sharp)
platform
Rio allows you to have different configurations per OS. You can override Shell, Navigation, Renderer, Window, env-vars, and theme on a per-platform basis.
Field-Level Merging
Platform overrides use field-level merging for Window, Navigation, and Renderer configurations. This means you only need to specify the fields you want to override - other fields will be preserved from the global configuration.
Example (only overriding window mode and opacity):
[window]
width = 1024
height = 768
opacity = 0.75
blur = true
[platform]
# On macOS, only override the mode - width, height, opacity, and blur are preserved
macos.window.mode = "Maximized"
Shell Configuration
Shell configuration uses complete replacement - if you specify a platform-specific shell, you must provide the complete shell configuration:
[shell]
program = "/bin/fish"
args = ["--login"]
[platform]
# Shell is completely replaced on Windows
windows.shell = { program = "pwsh", args = ["-l"] }
# Shell is completely replaced on Linux
linux.shell = { program = "tmux", args = ["new-session", "-c", "/var/www"] }
Platform-Specific Environment Variables
You can define platform-specific environment variables that are appended to your global env-vars:
env-vars = ["GLOBAL_VAR=value"]
[platform]
macos.env-vars = ["MACOS_SPECIFIC=yes"]
linux.env-vars = ["LINUX_SPECIFIC=yes"]
windows.env-vars = ["WINDOWS_SPECIFIC=yes"]
Platform-Specific Themes
Override the theme on specific platforms:
theme = "lucario"
[platform]
macos.theme = "dracula"
linux.theme = "nord"
Complete Example
# Global configuration
theme = "default"
env-vars = ["EDITOR=vim"]
[window]
width = 1024
height = 768
opacity = 0.9
[renderer]
performance = "High"
[shell]
program = "/bin/bash"
args = ["--login"]
[platform]
# macOS: Override only specific fields
macos.theme = "dracula"
macos.env-vars = ["HOMEBREW_PREFIX=/opt/homebrew"]
macos.window.opacity = 1.0 # Other window fields preserved
macos.renderer.backend = "Metal"
macos.shell = { program = "/bin/zsh", args = ["-l"] }
# Linux: Different overrides
linux.window.mode = "Maximized"
linux.renderer.backend = "Vulkan"
# Windows: Complete customization
windows.theme = "nord"
windows.env-vars = ["WINDOWS_VAR=value"]
windows.shell = { program = "pwsh", args = ["-NoLogo"] }
renderer.performance
Set WGPU rendering performance.
High: Adapter that has the highest performance. This is often a discrete GPU.Low: Adapter that uses the least possible power. This is often an integrated GPU.
[renderer]
performance = "High"
renderer.backend
Set WGPU rendering backend.
Automatic: Leave Sugarloaf/WGPU to decideGL: Supported on Linux/Android, and Windows and macOS/iOS via ANGLEVulkan: Supported on Windows, Linux/AndroidDX12: Supported on Windows 10Metal: Supported on macOS/iOS
[renderer]
backend = "Automatic"
renderer.disable-unfocused-render
This property disable renderer processes while Rio is unfocused.
Default is false.
[renderer]
disable-unfocused-render = false
renderer.disable-occluded-render
This property disables renderer processes while Rio windows/tabs are occluded (completely hidden from view). This is different from unfocused rendering as it depends on whether the window is minimized, set invisible, or fully occluded by another window.
When a window becomes visible again after being occluded, Rio will automatically render one frame to update the display.
Default is true.
[renderer]
disable-occluded-render = true
renderer.target-fps
This configuration is disabled by default but if isLimits the maximum number of frames per second that rio terminal will attempt to draw on a specific frame per second interval.
[renderer]
target-fps = 120
renderer.filter
Rio allow to configure filters based on RetroArch shaders: github.com/libretro/slang-shaders.
Builtin filters:
newpixiecrt.fubax_vr.
Note: Filters does not work with GL backend.
[renderer]
filters = [
# Loads built-in crt
"NewPixieCrt",
# Or from a specific path
"/Users/raphael/Downloads/slang-shaders-master/crt/newpixie-crt.slangp"
]
renderer.strategy
Strategy property defines how Rio will render, by default it follows Event driven (Events), but you can change it to a continuous loop (that will consume more CPU) by changing to Game.
[renderer]
strategy = "events"
scroll
You can change how many lines are scrolled each time by setting this option. Scroll calculation for canonical mode will be based on lines = (accumulated scroll * multiplier / divider).
If you want a quicker scroll, keep increasing the multiplier. If you want to reduce scroll speed you will need to increase the divider.
You can combine both properties to find the best scroll for you.
- Multiplier default is
3.0. - Divider default is
1.0.
Example:
[scroll]
multiplier = 3.0
divider = 1.0
enable-scroll-bar
Show an overlay scroll bar when scrolling. The scroll bar appears on scroll and fades out after 2 seconds. It does not change the width of the content and works independently in each panel. The scroll bar is also draggable.
Default is true.
enable-scroll-bar = true
shell
You can set shell.program to the path of your favorite shell, e.g. /bin/fish.
Entries in shell.args are passed unmodified as arguments to the shell.
Default:
- (macOS) user login shell
- (Linux/BSD) user login shell
- (Windows) powershell
Shell Examples
- MacOS using fish shell from bin path:
[shell]
program = "/bin/fish"
args = ["--login"]
- Windows using powershell:
[shell]
program = "pwsh"
args = []
- Windows using powershell with login:
[shell]
program = "pwsh"
args = ["-l"]
- MacOS with tmux installed by homebrew:
[shell]
program = "/opt/homebrew/bin/tmux"
args = ["new-session", "-c", "/var/www"]
theme
The configuration property theme is used for specifying the theme. Rio will look in the themes folder for the theme.
You can see common paths for the themes directory here:
Note: Remember to replace "YOUR_USERNAME" with your actual user name.
| Platform | Path |
|---|---|
| Mac | /Users/YOUR_USERNAME/.config/rio/themes |
| Linux | /home/YOUR_USERNAME/.config/rio/themes |
| Windows | C:\Users\YOUR_USERNAME\AppData\Local\rio\themes |
In the example below, we will setup the Dracula theme for Rio. The theme can be downloaded from github.com/dracula/rio-terminal.
After downloading the dracula.toml file, move it inside the folder themes in the configuration folder.
# ~/.config/rio/config.toml
theme = "dracula"
It should look like this:
Another option would be to install the Lucario color scheme for Rio terminal, by moving the downloaded file to ~/.config/rio/themes/lucario.toml and setting the theme property:
# ~/.config/rio/config.toml
theme = "lucario"
You can find more than 250 themes for Rio terminal in this repository: mbadolato/iTerm2-Color-Schemes/tree/master/rio.
Building your own theme
Building your own theme for Rio is very straightforward.
Simply create a new theme file in your configuration themes folder (E.g. ~/.config/rio/themes/foobar.toml) and choose your preferred colors:
Note: Missing fields will use the default for Rio.
# ~/.config/rio/themes/foobar.toml
[colors]
background = ""
foreground = ""
# Selection
selection-background = ""
selection-foreground = ""
# Navigation
tabs = ""
tabs-active = ""
bar = ""
split = ""
cursor = ""
vi-cursor = ""
# Search
search-match-background = ""
search-match-foreground = ""
search-focused-match-background = ""
search-focused-match-foreground = ""
# Regular colors
black = ""
blue = ""
cyan = ""
green = ""
magenta = ""
red = ""
tabs = ""
white = ""
yellow = ""
# Dim colors
dim-black = ""
dim-blue = ""
dim-cyan = ""
dim-foreground = ""
dim-green = ""
dim-magenta = ""
dim-red = ""
dim-white = ""
dim-yellow = ""
# Light colors
light-black = ""
light-blue = ""
light-cyan = ""
light-foreground = ""
light-green = ""
light-magenta = ""
light-red = ""
light-white = ""
light-yellow = ""
After that all you have to do is set the theme property in your configuration file.
# ~/.config/rio/config.toml
theme = "foobar"
Proud of your new theme? Why not share it on the Rio Discord!
title.content
Configure window title using template. Default: {{ title || program }}
Note: Variables are not case sensitive.
Possible options:
TITLE: terminal title via OSC sequences for setting terminal titlePROGRAM: (e.gfish,zsh,bash,vim, etc...)ABSOLUTE_PATH: (e.g/Users/rapha/Documents/a/rio)
COLUMNS: current columnsLINES: current lines
Example 1:
[title]
content = "{{ PROGRAM }} - {{ ABSOLUTE_PATH }}"
Result: fish - .../Documents/a/rio.
Example 2:
[title]
content = "{{ program }} ({{columns}}x{{lines}})"
Result: fish (85x23).
Example 3:
You can use || operator, in case the value is empty or non-existent it will use the following:
[title]
content = "{{ TITLE || PROGRAM }}"
In this case, TITLE is non-existent so will use PROGRAM.
Result: zsh
title.placeholder
Configure initial title.
[title]
placeholder = "▲"
use-fork
Defaults for POSIX-based systems (Windows is not configurable):
- MacOS: spawn processes
- Linux/BSD: fork processes
use-fork = false
window.width
Define the initial window width.
- Default:
600
Example:
[window]
width = 600
window.height
Define the initial window height.
- Default:
400
Example:
[window]
height = 400
window.mode
Define how the window will be created
Windowed(default) is based on width and heightMaximizedwindow is created with maximizedFullscreenwindow is created with fullscreen
Example:
[window]
mode = "Windowed"
window.opacity
Set window background opacity.
- Default:
1.0.
Example:
[window]
opacity = 0.5
window.blur

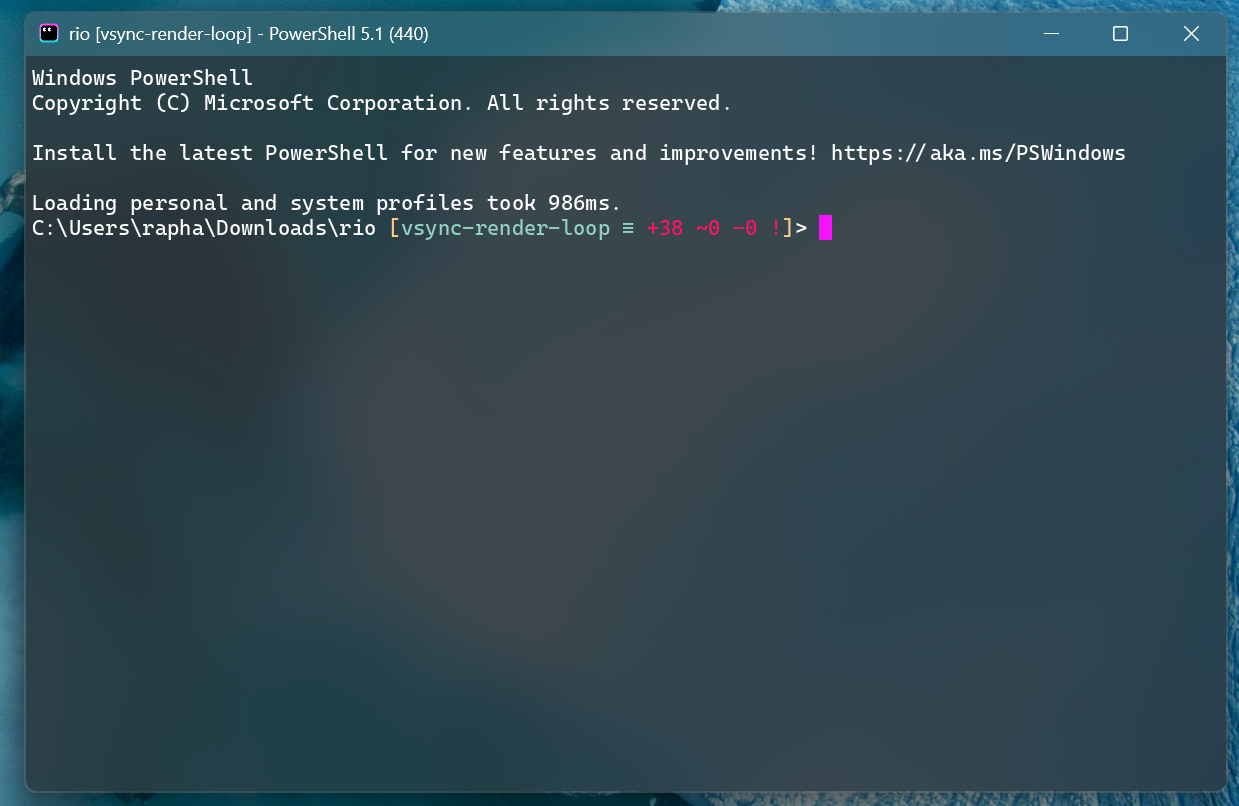

Set blur on the window background. Changing this config requires restarting Rio to take effect.
- Default:
false.
[window]
blur = false
Using blur and background opacity:
[window]
opacity = 0.5
decorations = "enabled"
blur = true
window.background-image

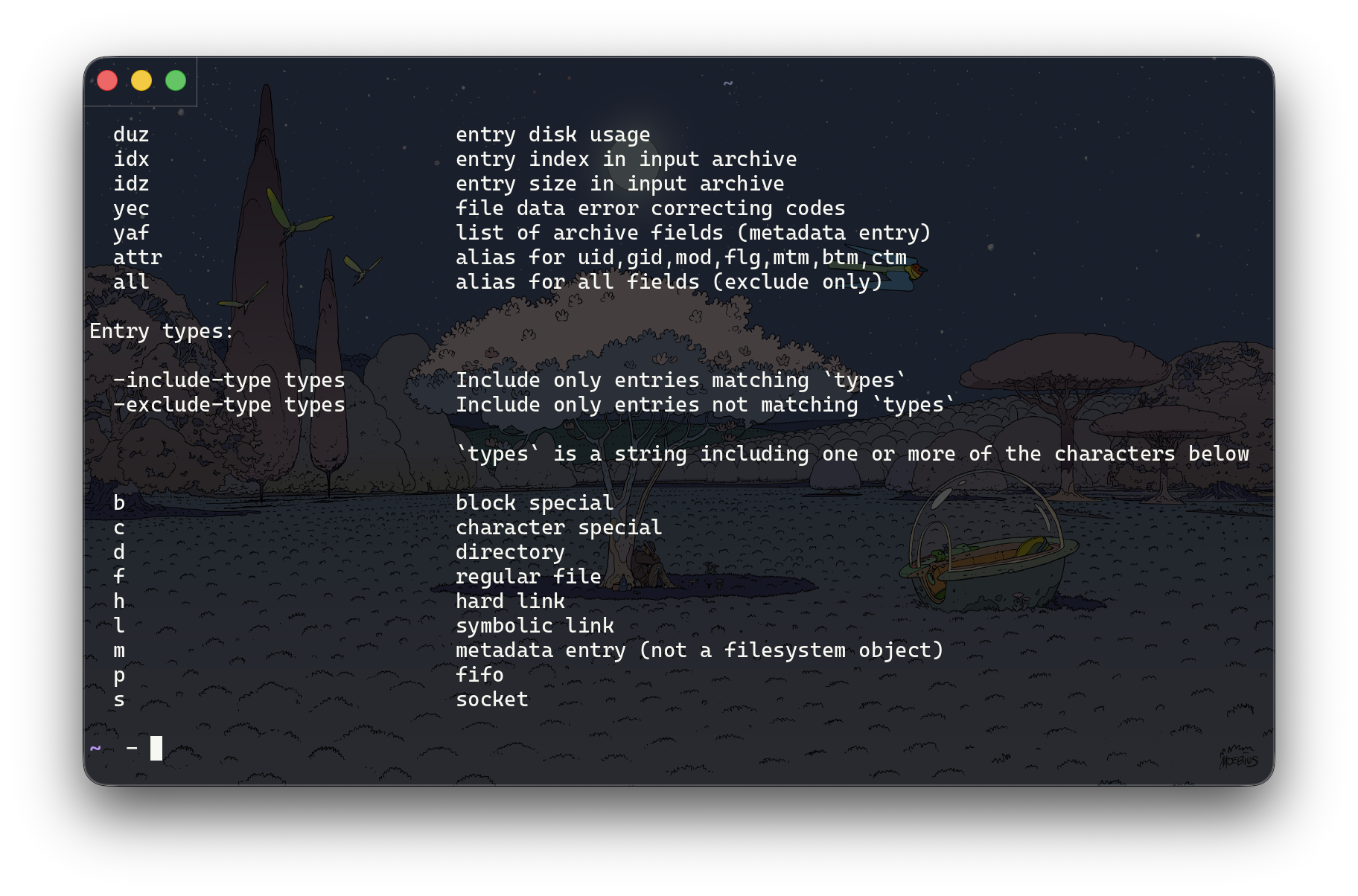

Set an image as background.
- Default:
None
Using image as background:
If both properties width and height are occluded then background image will use the terminal width/height.
[window.background-image]
path = "/Users/hugoamor/Desktop/musashi.png"
opacity = 0.5
x = 0.0
y = -100.0
If any property width or height are used then background image will be respected.
[window.background-image]
path = "/Users/hugoamor/Desktop/harvest-moon.png"
width = 1200
height = 800
opacity = 0.5
x = 0.0
y = 0.0
window.decorations
Set window decorations.
Enabled(default for Windows/Linux/BSD/macOS) enable window decorations.Disableddisable all window decorations.Transparentwindow decorations with transparency.Buttonlessremove buttons from window decorations.
Example:
[window]
decorations = "Enabled"
window.macos-use-unified-titlebar
You can use MacOS unified titlebar by config, it's disabled by default.
[window]
macos-use-unified-titlebar = false
window.macos-use-shadow
You can enable window shadow on MacOS by config, it's disabled by default.
[window]
macos-use-shadow = true
window.macos-traffic-light-position-x
Customize the horizontal position of macOS traffic light buttons (close, minimize, maximize). Position is specified in points from the left edge of the window.
Note: This setting is ignored when navigation mode is set to "Tab" as the traffic lights are positioned automatically for that mode.
[window]
macos-traffic-light-position-x = 9.0
window.macos-traffic-light-position-y
Customize the vertical position of macOS traffic light buttons (close, minimize, maximize). Position is specified in points from the top edge of the window.
Note: This setting is ignored when navigation mode is set to "Tab" as the traffic lights are positioned automatically for that mode.
[window]
macos-traffic-light-position-y = 9.0
window.windows-corner-preference
Describes how the corners of a Microsoft Windows window should look like.
Options: Default, DoNotRound,Round and RoundSmall
[window]
windows-corner-preference = "Round"
window.windows-use-undecorated-shadow
Microsoft Windows specific.
Shows or hides the background drop shadow for undecorated windows.
[window]
windows-use-undecorated-shadow = false
window.windows-use-no-redirection-bitmap
Microsoft Windows specific.
This sets WS_EX_NOREDIRECTIONBITMAP.
[window]
windows-use-no-redirection-bitmap = false
working-dir
Directory the shell is started in. If this is unset, the working directory of the parent process will be used.
This configuration only works if use-fork is disabled.
working-dir = '/Users/raphael/Documents/'
